Power up to 30W - HILT pulses

High power enables delivery of therapeutic energy into tissues with a controlled thermal profile. This helps reduce procedure time, improve protocol reproducibility, and enhance tolerability when working with deep structures.

Multi-wavelength platform

Unlike mono-1064nm systems, the combination of different wavelengths allows control of the absorption profile and depth energy distribution across target layers - from superficial structures to deep tissues.

Clinical control preset programs + manual mode

Preset programs speed up staff workflow, while manual settings give the physician full flexibility. Parameters are adjusted quickly. Clear interface logic.

Energy reaching the target area

Contact us

High-intensity HILT therapy - from rapid pain relief to supporting tissue recovery processes.

Brief page summary in 15 seconds

Scientific Rationale

Photobiomodulation

Cellular Activation and Analgesic Effect

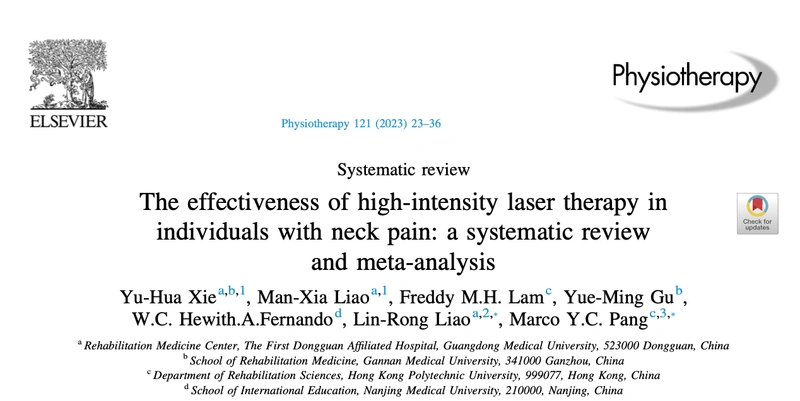

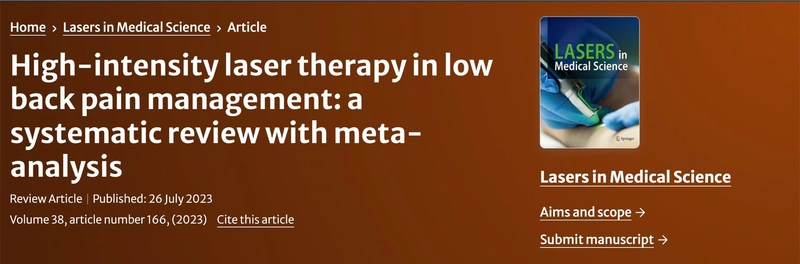

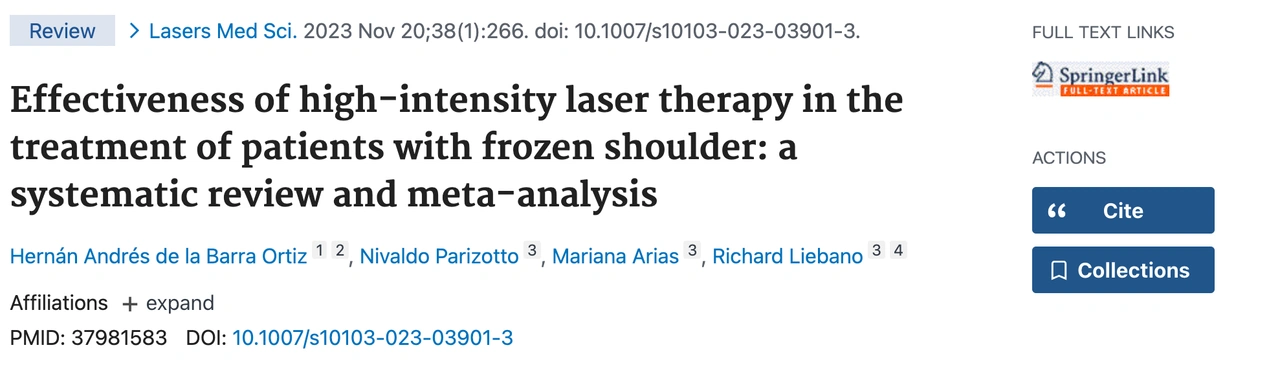

Studies on photobiomodulation and high-intensity laser therapy show that targeted delivery of photon energy can modulate cellular activity, microcirculation, and inflammatory response, as well as reduce pain severity in various clinical scenarios. The overall effect depends on protocol parameters, treatment area, and tissue condition.

Key Biological Effects

Mitochondrial Activation and ATP: photon energy can enhance the activity of mitochondrial processes and increase the energy potential of the cell, supporting repair and recovery.
Analgesia: pain reduction may be associated with the modulation of nociceptive transmission, decreased excitability of pain receptors, and effects on nerve fiber conduction, as well as a reduction in the inflammatory component.
Anti-inflammatory Action: supporting microcirculation and lymphatic drainage can help reduce swelling and accelerate the resolution of inflammation.

Klinogicare Platform

Engineering Architecture

Advanced Technologies of Beam Ultra Power 30W

The innovative solutions embedded in the HILT platform distinguish the system from its analogs, ensuring maximum penetration depth without loss of power.

Technological Superiority

30W Peak Power: allows for high energy density in the treatment area while maintaining a controlled thermal profile.
Multi-wavelength Matrix: expands the range of interaction with tissue chromophores and helps adapt the protocol for different depths and tissue types.
Intelligent Control: dynamic management of pulse parameters helps reduce the risk of excessive heating when operating at high loads.

This architecture supports the clinical reproducibility and safety of the procedure, provided the protocol is correctly selected and the methodology is followed.

Description of High-Intensity Laser Therapy Methodology

Photobiomodulation combined with HILT architecture: controlled energy delivery and reproducible clinical effect

High-Intensity Laser Therapy (HILT) is a treatment method based on the use of coherent infrared radiation, providing targeted delivery of photon energy into tissues.

The depth and volume of penetration depend on the optical properties of the tissues, wavelength, operating mode (continuous or pulsed), power, and dosage. In pulsed mode, high peak power allows reaching deep-seated structures while maintaining a controlled thermal profile and a more comfortable procedure experience.

At the cellular level, the key mechanism is considered to be the photochemical activation of the mitochondrial respiratory chain, including the cytochrome c oxidase enzyme complex. This leads to an increase in the synthesis of ATP — the universal energy source of the cell — and triggers a cascade of biological processes: modulation of the inflammatory response, pain relief, maintenance of microcirculation, and acceleration of metabolism and tissue regeneration.

Principle of Action

01

Photon Energy Delivery

The laser generates a targeted beam of infrared radiation with high energy density in the treatment area, allowing for precise and controlled application to anatomical structures.

02

Photochemical Activation

The absorption of photons by cellular chromophores activates mitochondrial processes and increases ATP synthesis, forming a biological response — from trophic to anti-inflammatory effects.

03

Controlled Therapeutic Implementation

The combination of pulsed mode and a multi-wavelength platform allows customizing the treatment profile: selectively by layers or comprehensively across multiple tissue levels, increasing protocol reproducibility.

Biological Effects

01

Regeneration and Metabolism

Supporting tissue recovery, accelerating cellular metabolism, and repair processes by increasing cellular energy (ATP).

02

Anti-inflammatory Response

Modulation of the inflammatory response, reduction of swelling severity, and support for inflammation resolution alongside improved microcirculation.

03

Analgesia

Reduction of pain syndrome and increase in functional comfort, simplifying the integration of the method into rehabilitation protocols.

04

Vascular Activity

Support of tissue perfusion and local trophics, improving metabolic processes and oxygen delivery in the treatment area.

05

Neuromuscular Function

Support of the functional response of the nervous system and treatment of trigger points within protocols for pain and soft tissues.

06

Tissue Remodeling

Reduction of the tendency for excessive fibrosis and support for higher quality tissue remodeling during the recovery period.

Unlike single-wavelength approaches, where the therapeutic implementation of energy may be limited to one "deep" range, a multi-wavelength architecture expands the absorption spectrum. This allows for the creation of protocols with targeted depth penetration — from superficial structures to deep-seated tissues — or comprehensive treatment across multiple layers simultaneously. This increases the predictability of the clinical effect and the stability of results across a series of procedures.

HILT Photobiological Response Cascade

Below is a sequential chain of events: from the delivery of photon energy into tissues to cellular activation, changes in microcirculation, and the formation of a clinical effect during a course of treatment.

Stage 1: Energy Delivery and Absorption

1

Focused Photon Delivery into Tissues

High energy density with controlled applicator handling.

In pulsed HILT protocols, a powerful energy flow is generated, allowing work with deeper structures compared to low-intensity methods - provided correct dosing and adherence to safety protocols.

2

Absorption by Chromophores and Initiation of Photochemical Reaction

Conversion of light energy into a biological signal.

Photon energy is absorbed by intracellular chromophores, triggering a cascade of reactions related to cellular energy and the regulation of local recovery mediators.

3

Mitochondrial Activation and Cellular Energy Growth

Support of ATP synthesis and metabolic activity.

Stimulation of mitochondrial enzyme systems helps increase the energy potential of the cell (ATP), creating conditions for accelerating reparative processes and optimizing tissue metabolism.

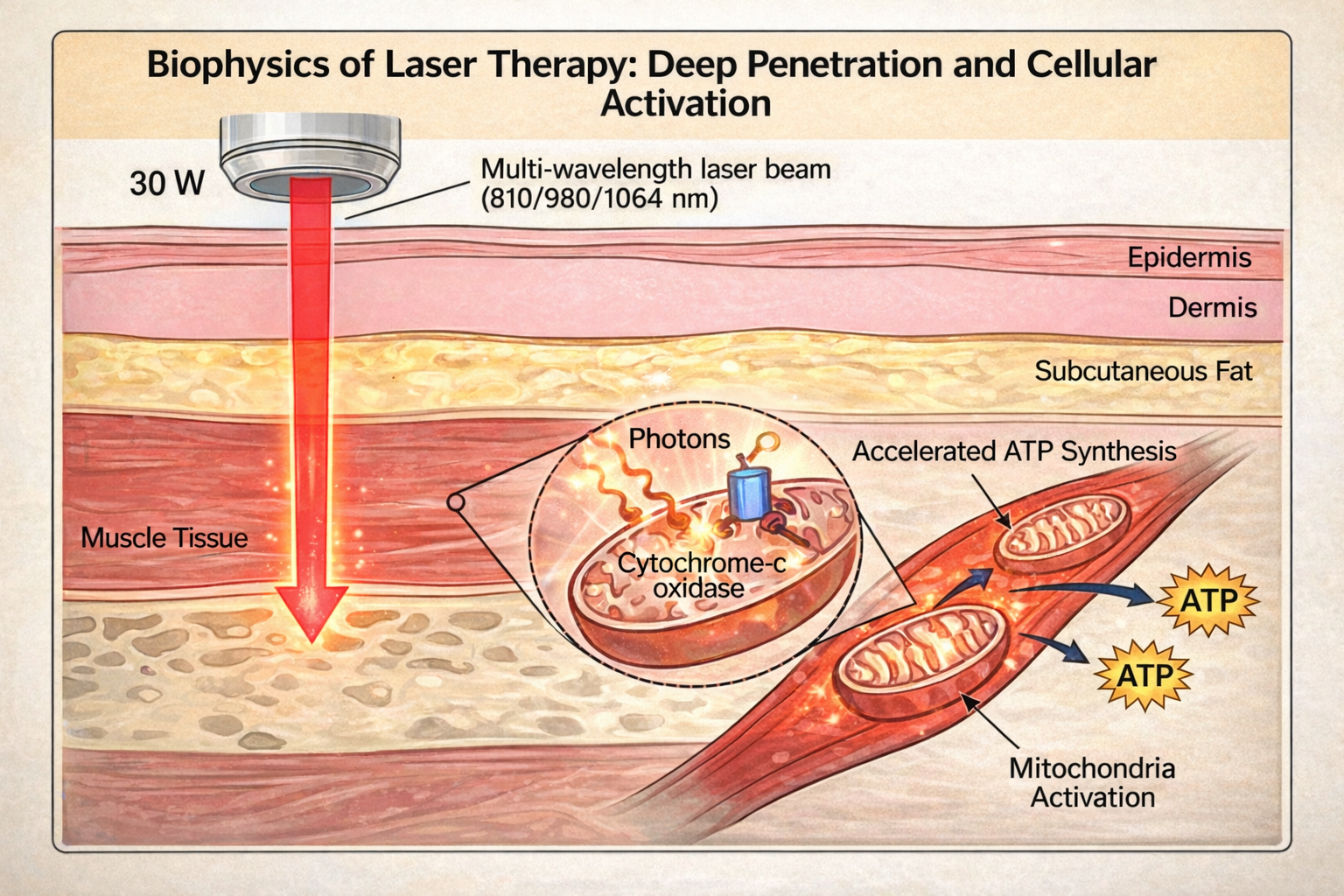

Photon - Chromophore - Response

The diagram illustrates the logic of photobiomodulation: delivery of photons, absorption by intracellular structures, and the transition to a biological response.

Energy delivery to the treatment area
Absorption by chromophores
Initiation of the photochemical cascade

Stage 2: Tissue Response and Clinical Effect

4

Improvement of Microcirculation and Tissue Trophics

Vascular response and support of oxygen delivery.

Against the background of cellular activation and local regulation of mediators, an improvement in microcirculation is possible, which is important for reducing congestion and supporting recovery from overload and injuries.

5

Reduction of Pain and Inflammatory Component

Modulation of pain sensitivity and recovery processes.

With correct dosing, HILT can help reduce pain sensitivity, decrease swelling, and support regeneration, especially in combination with physical therapy and rehabilitation protocols.

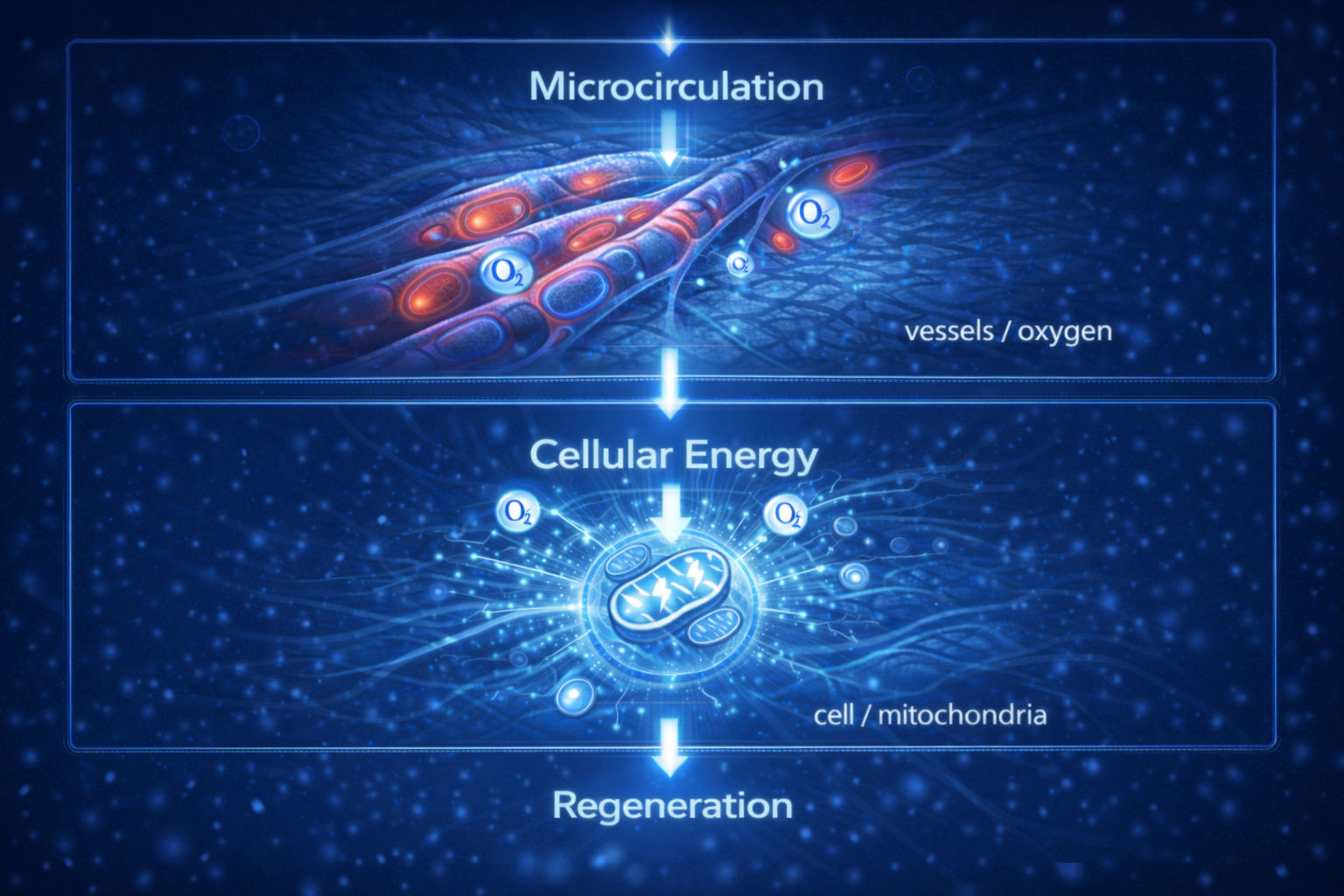

Cellular Energetics and Regeneration

Visually - the connection between the growth of cellular energy, metabolic activity, and conditions for tissue repair.

Growth of cellular energy potential
Support of metabolism and trophics
Conditions for tissue recovery

6

Prolonged Result with a Course of Treatment

In clinical practice, HILT is used as a component of comprehensive rehabilitation: to reduce pain, decrease swelling, improve mobility, and accelerate the recovery of soft tissues. The effect typically builds up over a course of treatment and with a competent combination of loading protocols, mobilization, and exercises.

Ecosystem Integration

The device is fully compatible with other Klinogicare® solutions. The solutions can be integrated into a single ecosystem for coordinated protocol logic and unified procedure parameter settings. Such an architecture ensures a continuous and predictable transition to a comprehensive, seamless procedure without process interruption.

Full-Cycle Client Support

Turnkey delivery, installation, configuration, and service support, along with staff training. Warranty, post-warranty service, and access to engineering assistance, diagnostics, and operational consultations.

HILT Spectrum Atlas. Selection Guide

The effectiveness of a high-intensity laser is determined not only by its power but also by its emission wavelength. Different wavelengths are absorbed differently by tissues and chromophores (water, hemoglobin, melanin, cytochromes), which affects the depth of penetration and the biological effect. For a clinically correct selection of parameters, it is important to consider which chromophore is the primary target for a specific task.

Wavelength	Biological Interaction	Clinical Application
450 nm - blue spectrum	Pronounced absorption by hemoglobin and melanin, predominantly superficial action.	Antibacterial effect and work with superficial tissues - used limitedly in sports practice and is not a core wavelength for muscles and tendons.
650 nm - red spectrum	Photobiomodulation of superficial tissues and support of cellular energy metabolism.	Acceleration of epithelialization and healing, work with skin and superficial soft tissues, support of regeneration for minor injuries.
780 nm	Activation of mitochondrial processes and enhancement of ATP synthesis.	Regeneration support, neurorehabilitation programs, work with soft tissues - penetration depth is greater than the red spectrum but lower than the far IR range.
810 nm	Improvement of energy metabolism, support for regeneration of muscle and tendon tissue, reduction of the inflammatory response.	Muscle and tendon recovery, post-load and microtrauma programs, comprehensive sports rehabilitation protocols.
905 nm	Interaction with tissue chromophores and support of tissue oxygenation.	Support of healing and recovery processes, treatment of microdamage consequences, post-high-load protocols.
980 nm	Good water absorption - influence on receptor structures and vascular responses with proper thermal control.	Rapid analgesia and inflammation control, work with the peripheral nervous system and pain syndromes.
1064 nm (Nd:YAG)	Deep penetration and energy delivery to deep-seated structures, influence on inflammatory and metabolic processes.	Deep muscle layers, large joints, chronic pain syndromes, recovery after injuries and surgeries in sports practice.
1210 nm	High water absorption and generation of gentle interstitial heat.	Support of microcirculation and perfusion, improvement of local oxygenation, protocols focused on tissue trophics.

Note: the final therapeutic effect is determined by a combination of wavelength, energy density, and emission mode. Multi-wavelength HILT systems allow selective treatment of different tissues or comprehensive therapy across multiple layers.

HILT Classification by Power

Laser power is an indicator of the rate of energy delivery to the tissue. All else being equal, higher power allows for faster delivery of a target dose (J) to the target area, shortening session duration, and increasing protocol reproducibility when treating deep structures and large muscle masses.

Power	Clinical Profile (Delivery Rate)	Typical Areas and Scenarios
Up to 5 W	Low energy delivery rate. Suitable for superficial protocols and small areas where gentle dosing and high precision are important.	Superficial soft tissues, small areas, local trigger points, areas of skin and subcutaneous tissue.
10-12 W	Moderate delivery rate. Typical level for basic physical therapy, comfortable handling of most local tasks with adequate procedure duration.	Medium muscle groups, ligament-tendon structures, local overload zones, epicondylitis.
15 W	Stable delivery rate. A balance of time and dose for regular clinical practice and medium-depth sports protocols.	Local pain zones, overload syndromes, medium-thickness ligaments and tendons, medium-volume muscle groups.
18 W	Increased delivery rate. Convenient for working with denser tissues and deeper areas while maintaining parameter control.	Large joints, dense fasciae, Achilles tendon, medium and high-complexity sports injuries.
25 W	High delivery rate. Suitable for intensive rehabilitation scenarios and treating large areas where time-saving without dose loss is critical.	Large muscle masses, thigh and back areas, deep tendon structures, high-volume clinic protocols.
28 W	High delivery rate with performance reserve. Convenient under regular load and the need to quickly treat large areas.	Large joints and massive muscle groups, high-throughput sports centers.
30 W	Very high delivery rate. Significantly reduces procedure duration when working with deep structures and large areas, assuming proper parameter control.	Deep-seated structures, large joints, massive muscle groups, high-intensity sports rehabilitation.
45 W	Maximum energy delivery rate in rehabilitation protocols. Practical when working with very large areas and patients with large tissue volume, where it is critical to reduce procedure time and ensure an adequate deep dose.	Large muscle masses, deep joints, high-load sports practice, working with athletes of large anthropometry.

Note: power comparisons should be made in the context of a specific wavelength, mode (continuous/pulsed), and target dose (J). In practical application, power translates into the rate of energy delivery, session duration, and convenience when treating deep areas. From a biophysical standpoint, the penetration capacity of high-intensity (HILT) and low-intensity (LLLT) lasers is comparable, as photon delivery depth is determined by the wavelength, not the device's output power. The fundamental clinical difference lies in the kinetics of energy transfer — the time required for tissues to accumulate a therapeutic dose. For example, delivering the energy volume sufficient to relieve pain in knee osteoarthritis requires about 7 minutes with a high-intensity system (HILT). To accumulate the same joule dose, a low-intensity device would require continuous exposure lasting approximately 16 hours.

Main Therapeutic Objectives of HILT

Relief of acute and chronic pain through neuromodulation and photobiological effects

Reduction of the inflammatory process and tissue swelling

Stimulation of muscle and tendon tissue regeneration

Activation of microcirculation and improvement of tissue oxygenation

Acceleration of recovery after injuries and sports overloads

Increase in cellular energy and ATP synthesis

Restoration of joint mobility and soft tissue function

Sports rehabilitation and accelerated return to training

Anatomical Atlas of HILT Application

Localization of Therapeutic Effect

The combination of high peak power and a multi-wavelength platform allows for the effective delivery of a therapeutic energy dose to various tissue layers. This expands the range of clinical tasks - from superficial inflammatory reactions of soft tissues to pathologies of deep structures of large joints and the paravertebral zone.

Vertebrogenic Zone

Support for therapy of the cervical, thoracic, and lumbar regions. Reduction of the musculotonic pain component, reduction of the inflammatory response in paravertebral tissues, and improvement of the functional response in vertebrogenic syndromes.

Large Joints

Knee, hip, and shoulder joints. Analgesia programs, reduction of synovitis and reactive swelling, support for the recovery of soft tissue structures and periarticular tissues in degenerative-inflammatory changes.

Peripheral Nervous System

Neuromodulation (pain relief) in tunnel syndromes and peripheral neuropathies. Support for conductivity restoration, reduction of the neurogenic pain component, and improvement of tissue trophics in compression zones.

Muscles and Fascias (Fasciae)

Treatment of myofascial pain syndrome, local trigger zones, and post-exertional reactions. Acceleration of recovery after microinjuries, reduction of muscle spasm, and improvement of microcirculation.

Ligamentous and Tendon Apparatus

Protocols for tendinopathies and enthesopathies: Achilles tendon, epicondylitis, plantar fasciitis. Support for reparative processes, collagenogenesis, and pain reduction during functional overload.

Icon Preview - Dermatology

Clinical Indications

CLINICAL_MATRIX_V3.0

Sports Medicine and Functional Rehabilitation

SPORT_REHAB

Optimization of recovery phases: Support for accelerated return to the training process (Return-to-Play) through photobiomodulation, improvement of microcirculation, and metabolic support of tissues.
Muscle injuries: Inclusion in recovery programs for strains, microtears, and muscle contusions - as a component of comprehensive rehabilitation.
Management of overload syndromes: Reduction of pain and inflammatory components in tendinopathies and enthesopathies (achillodynia, patellar tendinitis, epicondylitis).
Control of post-exertional state: Correction of the musculotonic component and local tissue reactivity after intensive physical exertion.
Reduction of reactive swelling: Support for edema resorption and normalization of trophics in the area of sports injury by improving microcirculation and lymphatic drainage.
Working with fascial structures: Support for the therapy of myofascial pain syndrome and overload changes in fascia within specialist protocols.

Orthopedics and Traumatology

ORTHO_TRAUMA

Management of pain syndromes: Reduction of pain severity and functional limitations in degenerative-dystrophic joint diseases (stage I-III arthrosis) - as part of comprehensive therapy.
Post-trauma support: Improvement of soft tissue trophics and control of the local inflammatory response in the post-traumatic period.
Synovitis and bursitis: Support for the reduction of reactive inflammation and swelling of periarticular tissues with the correct selection of parameters.
Ligamentous and tendon apparatus: Application in rehabilitation programs for overload and post-traumatic changes in ligaments and tendons (including partial tears) under the supervision of a specialist.
Postoperative recovery: Support for reparative processes and microcirculation in tissues after orthopedic interventions as an element of the rehabilitation protocol.
Kinesiological adaptation: Assistance in restoring the physiological range of motion and reducing functional blocks in rehabilitation programs.

Neurology and Pain Management

NEURO_PAIN

Modulation of the pain response: Support for reducing pain severity through photobiomodulation, influence on peripheral nociceptive mechanisms, and local inflammatory response.
Radicular syndromes: Application in programs for treating pain and the inflammatory component in radiculopathies and vertebrogenic pain syndromes under the supervision of a specialist.
Tunnel syndromes: Support for reducing swelling and improving tissue trophics in the area of nerve structure compression (carpal, tarsal tunnel) as an element of comprehensive therapy.
Neuralgias: Symptomatic support for the neurogenic pain component (including intercostal neuralgia) within a specialist's protocol.
Myofascial triggers: Localized work with trigger points and myofascial pain syndromes (cervicothoracic area, lower back, pelvic girdle) as part of rehabilitation programs.

Dermatology and Tissue Trophics

DERMA_TROPHIC

Healing support: Application of photobiomodulation to stimulate reparative processes in superficial tissues and improve local microcirculation.
Trophic disorders: Assisting in the improvement of perfusion and tissue oxygenation in trophic disorders - as a component of comprehensive management.
Cicatricial changes: Support for improving the elasticity and quality of scar tissue during the rehabilitation stages after injuries and surgeries under the supervision of a specialist.
Comprehensive trophics: Improvement of metabolic processes in the skin and subcutaneous fat due to local influence on microcirculation and vascular reactions.
Superficial inflammatory reactions: Reduction of tissue reactivity and support for recovery in local inflammatory conditions within a specialist's protocol.

Important Note

IMPORTANT_INFO

The information is provided for informational purposes only and is not a direct medical recommendation or instruction for use. High-intensity laser therapy (HILT) can be considered as a component of comprehensive multidisciplinary rehabilitation. The choice of therapeutic parameters, generation modes (continuous/pulsed), and treatment areas is carried out exclusively by a qualified specialist based on the patient's individual clinical status and current medical standards.

Contraindications and Application Features

CLINICAL_MATRIX_V2.0

Absolute Contraindications

ABSOLUTE_ALERT

Visual organs: directing the beam into the eye area is strictly prohibited - high risk of retinal damage. Protective glasses are mandatory for both the patient and the specialist.
Oncological diseases: direct application over the area of malignant neoplasms, as well as areas under active oncological observation/treatment.
Pregnancy: not applied to the abdominal, pelvic, and lumbosacral regions (projection of the uterus).
Active bleeding: not applied to bleeding areas or when ongoing hemorrhage is suspected.
Photosensitization: intake of photosensitizing drugs and photodermatoses - risk of a severe skin reaction; parameters are selected only after a specialist's assessment.
Endocrine gland zones: direct application over the thyroid gland and other endocrine glands is not recommended.

Relative and Zonal Limitations

RELATIVE

Hyperpigmentation and tattoos: treating tattoos/moles and areas of pronounced pigment requires lowering parameters and continuous monitoring of sensations - pigment absorbs energy more intensely and increases the risk of overheating.
Impaired sensitivity: in cases of neuropathies, diabetic foot, and reduced thermal sensitivity, parameters are reduced, and strict clinical control is used (to avoid overheating).
Acute systemic infections: procedures are postponed in the presence of fever and severe general condition.
Corticosteroid injections: a pause of 7-14 days is recommended in the area of a recent steroid injection, or a decision based on individual clinical assessment.

Important Safety Note (HILT Class IV)

IMPORTANT_INFO

Klinogicare® Beam Ultra Power belongs to high-intensity laser systems (Class IV), which requires strict compliance with optical and thermal safety regulations.

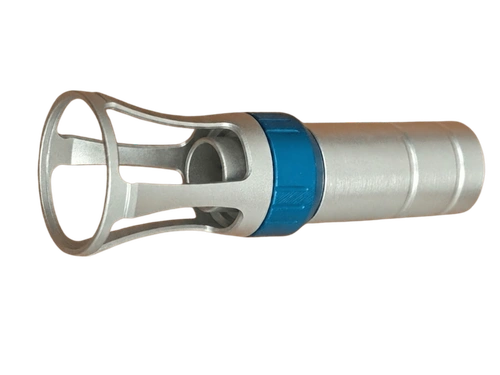

Thermal control: at high energy densities, the applicator must constantly move across the treatment area (scanning technique). Stopping at a single point with high parameters increases the risk of local overheating.
Metal and endoprostheses: the presence of metal structures, screws, and endoprostheses is usually not a limitation for HILT, but parameters and techniques are selected individually, taking into account depth, target tissues, and the patient's subjective sensations.

Application Features in Acute Pain and Trauma

ACUTE_PAIN_TECH

High-intensity laser therapy can be used as an independent method or as a component of comprehensive programs for:

acute sports injuries (strains, contusions, partial tears of muscles and ligaments)
reactive synovitis and joint effusions (as part of a comprehensive approach)
deep muscle spasms and severe myofascial pain syndrome
the need for rapid reduction of the pain component and tissue reactivity

The key safety principle is energy dosing, monitoring sensations, and continuous movement of the applicator over the treatment area. Parameters (power, mode, duration) are selected by a specialist based on the clinical task, tissue depth, and patient response.

Hardware Implementation

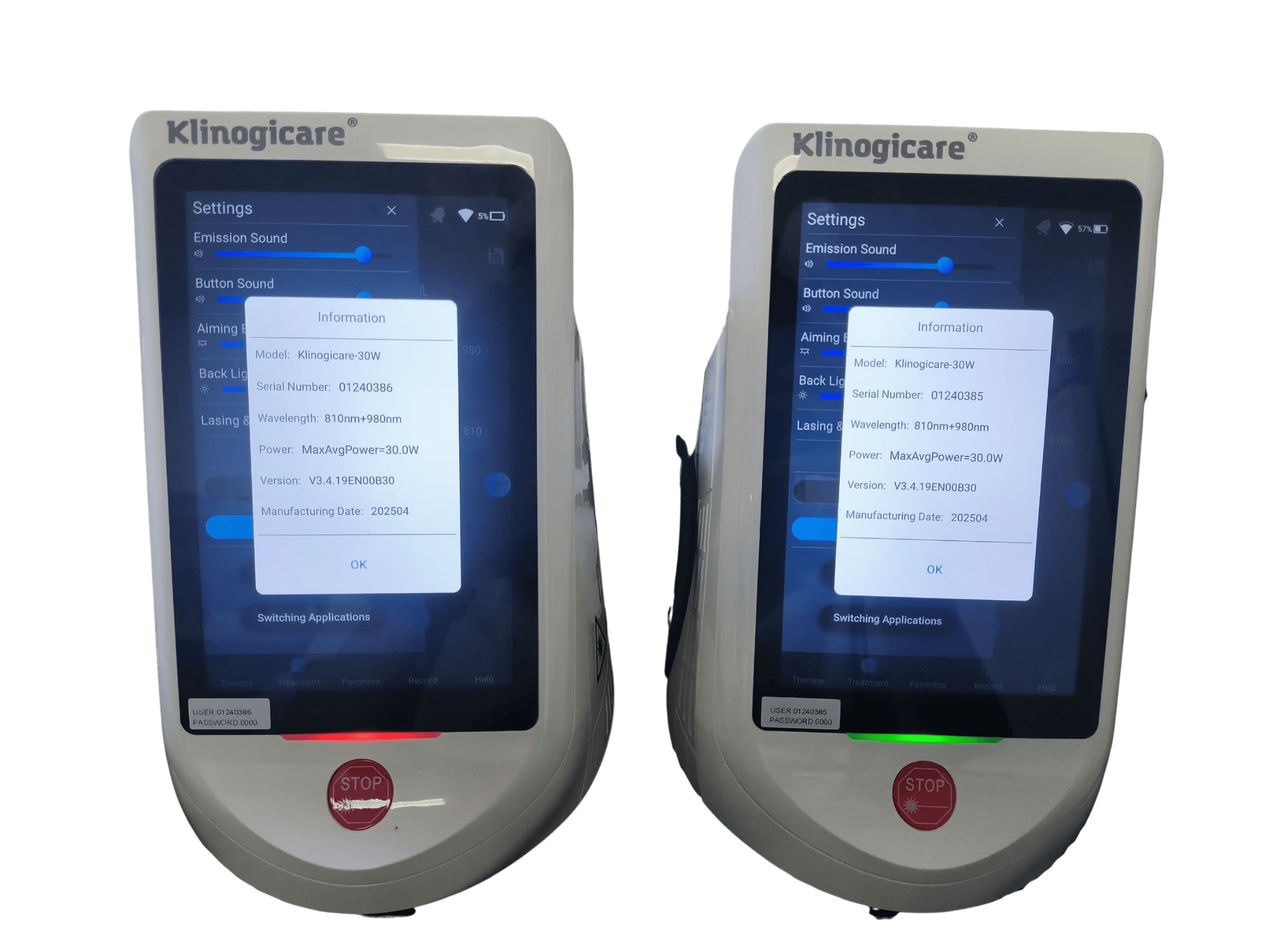

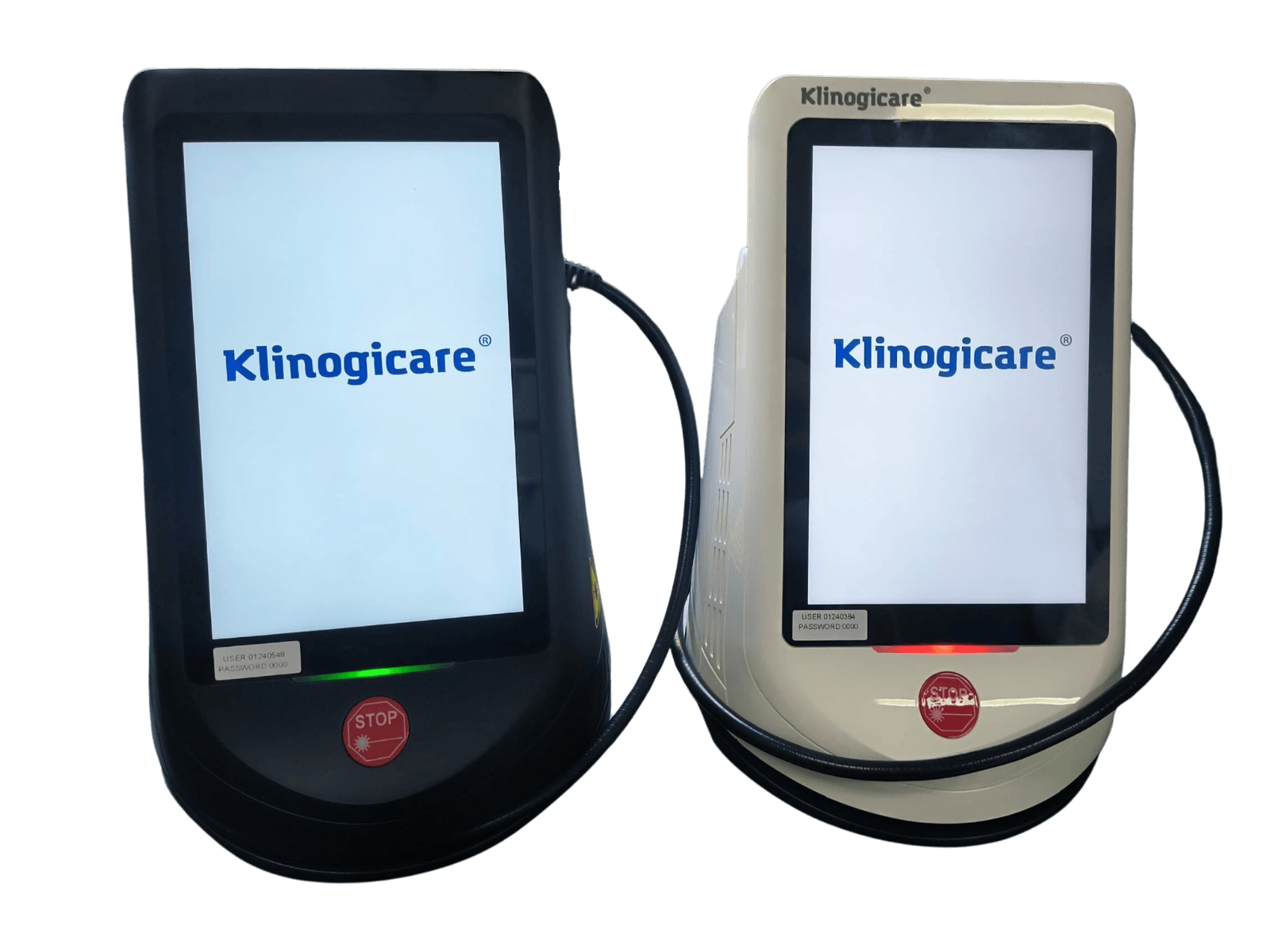

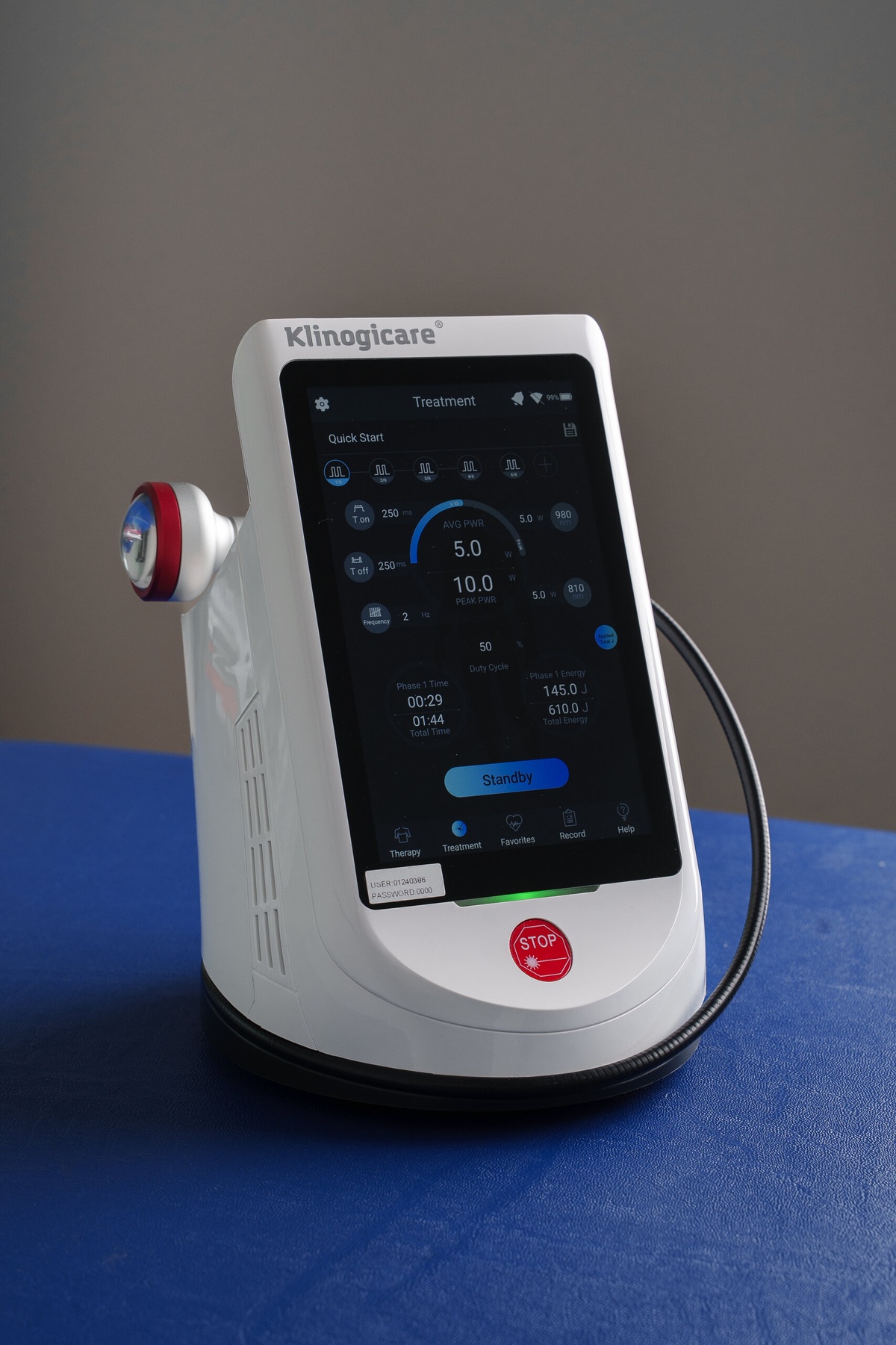

Klinogicare® Beam Ultra Power 30W

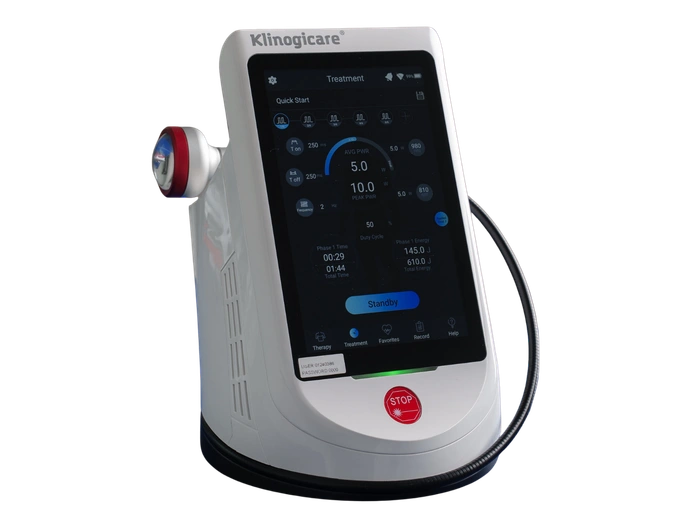

Klinogicare® Beam Ultra Power 30W is an innovative high-intensity laser therapy (HILT) platform designed for precise and reproducible operation at high power levels. The system's engineering solutions ensure deep penetration of photon energy while maintaining peak power and parameter stability during the procedure.

The multi-wavelength matrix expands the range of interaction with tissue chromophores, allowing flexible adaptation of the protocol to different tissue types and clinical tasks. Intelligent control of pulse parameters provides dynamic management of the emission and helps reduce the risk of excessive thermal effects during intensive loads.

Clinical reproducibility and technological superiority

Specifications

Technical Data

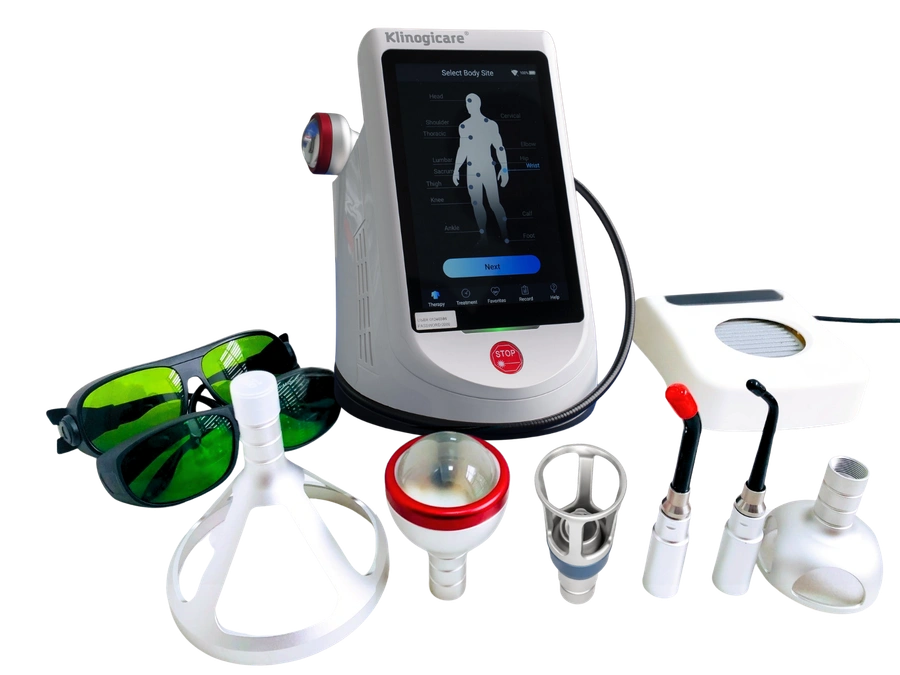

Delivery set with tripod

Klinogicare® Beam Ultra Power Physio Laser 30W

Portable laser with trolley and telescopic tripod for "hands-free" mode

Power Supply	Operating Voltage - 100-240 V~; 160 VA Frequency - 50/60 Hz Main Control - power switch Device Stop - Emergency Stop button DC Power - 12 V DC, 11.5 A / 15 V DC, 9.6 A (for built-in battery)
Laser Module	Laser Type - Gallium Aluminum Arsenide (GaAlAs) diode laser Aiming beam - red diode laser Wavelengths - 810 nm + 980 nm (or others - upon request) Output Power - up to 30 W (adjustable) Modes - continuous wave or repetitive pulse mode Supported - single pulse and repetitive pulsing (according to protocol) Pulse Duration - 10 µs - 3 s Repetition Rate - 1 Hz - 20 000 Hz Depending on the selected protocol and pulse settings Control - True Color Touch Screen Delivery System - optical fibers 200 µm and 600 µm, SMA905 connector Dimensions - 160 (W) x 180 (D) x 235 (H) mm Weight - 2.1 kg
Display and Interface	Display - 7 inch True Color Touch Screen Connectivity - Wi-Fi interface (updates and service scenarios) Software - pre-installed programs

Package and Transportation

Supplied in a protective shockproof case for transportation
Optional - wheeled trolley and tripod with remote control for Hand free mode
"Hands-free" mode - conducting the procedure without the constant presence of an operator

Note: product appearance may vary depending on the delivery region. Technical and functional parameters are identical for all versions of the device.

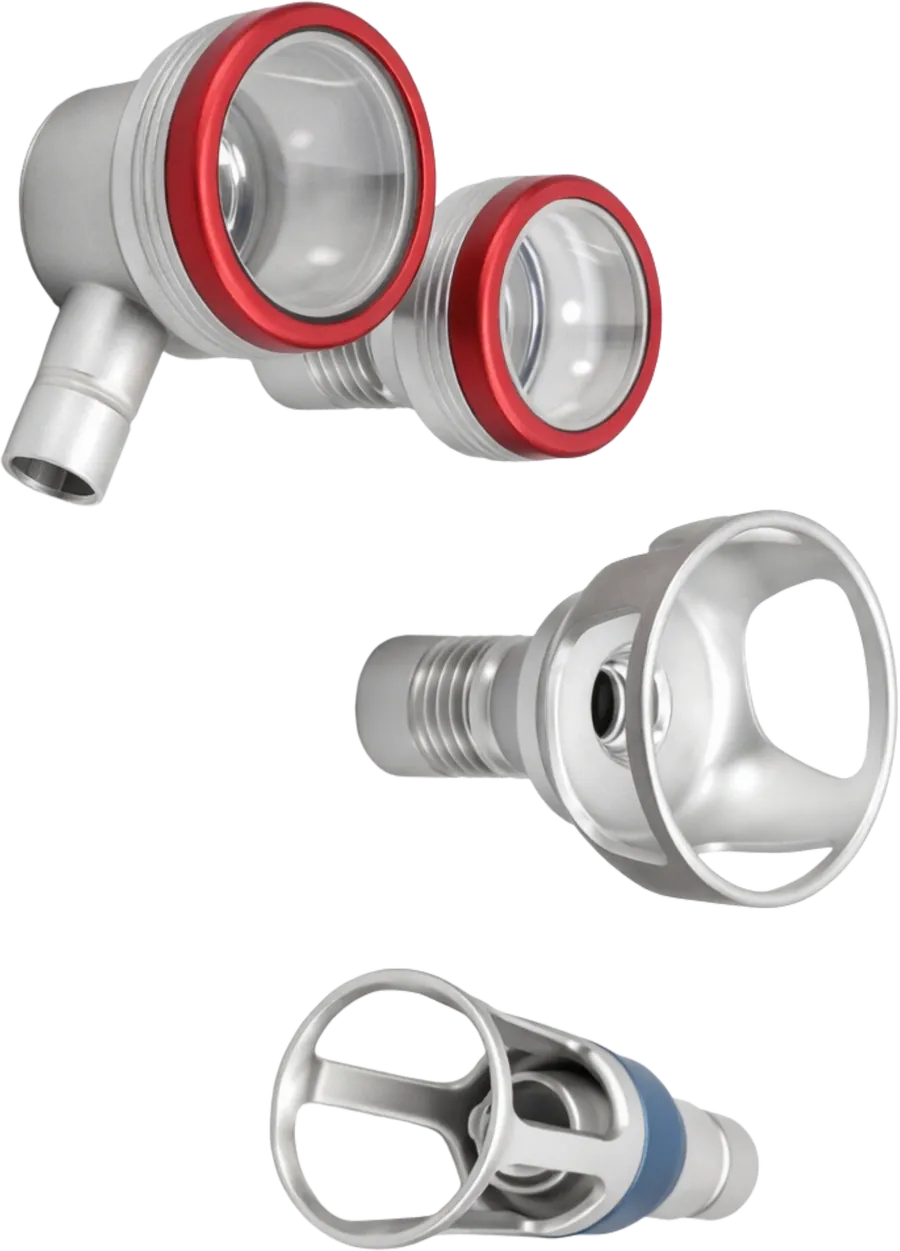

Applicators

15-30 mm - adjustable open head
30 mm - glass sphere head
100 mm - open head for "hands-free" mode
50 mm - rotating glass sphere head

FAQ

Questions and Answers

Information block on Klinogicare® Beam Ultra Power Physio Laser 30W (810 nm + 980 nm) high-intensity laser therapy

!

IMPORTANT NOTE: The information is provided for informational purposes only and does not constitute medical advice or instructions for use. Laser therapy is applied as a component of comprehensive rehabilitation. The selection of parameters, modes, and treatment areas is performed exclusively by a qualified specialist.

I. PATIENT QUESTIONS

Usually, no. The most common sensations are mild warmth, heating, and relaxation. At high power, the heat can be pronounced - the specialist adjusts parameters and technique to maintain safety and comfort.

Most often - warmth and deep heating of tissues. Sometimes - a slight tingling or a feeling of muscle "relief". Unlike electrical stimulation, there is no electric shock sensation and no electrodes.

Usually, yes, to accurately dose the energy and monitor the skin and sensations. In certain protocols, working through a thin layer of fabric is possible, but the decision is made by the specialist.

Usually no. In contact techniques with glass applicators, the specialist may use a contact medium for more comfortable gliding and even heating.

Sometimes relief is noticeable after the very first procedure (pain reduction, spasm decrease). A more stable effect is usually formed over a course - as the inflammatory background decreases and tissue function is restored.

Often 5-10 procedures, but the regimen depends on the task, the stage of the process, the depth of the target, and the tissue reaction. The number and frequency are determined by the specialist.

Usually 5-15 minutes per zone. The time depends on the treatment area, target (superficial or deep), mode (pulsed or continuous), and planned energy dose.

Often - yes. But in case of an acute injury, severe inflammation, or immediately after surgery, the load may be temporarily limited. The Return-to-Play decision is made by the specialist managing the recovery.

II. SAFETY

Yes, absolutely. Eye protection is necessary for the patient and the specialist because a direct beam hit or reflection can be dangerous to the retina. Glasses are matched to the wavelengths of the specific device.

No. Exposure to the eye area and direct eye irradiation are prohibited. Any procedures near the orbits are performed only under strict clinical rules and in the presence of appropriate institutional protocols.

Tolerance is usually good. Short-term increased sensitivity, skin redness, a feeling of warmth after the session, or tissue reaction to microcirculation activation are possible. In case of discomfort, the specialist reduces power, changes the applicator, or alters the technique.

With the correct technique, the risk is minimal. Safety is determined by the dose, pulse mode, selected applicator, movement speed, heat control, and consideration of the skin phototype.

Yes. Melanin absorbs light, so for a dark phototype and after an active tan, the specialist selects more gentle settings and carefully monitors sensations to avoid surface overheating.

Tattoos can absorb energy more intensely and heat up. Usually, the tattoo area is avoided, or a separate cautious tactic is used at the specialist's discretion. Always inform about a tattoo in the treatment area before starting the course.

The decision is always individual. Common limitations include: oncological diseases or suspicion thereof (especially in the active process area), pregnancy (especially the abdominal and lumbar areas), febrile states, pronounced photosensitivity, and areas of endocrine organs (e.g., thyroid gland) without a direct doctor's prescription.

III. PRACTICAL QUESTIONS

The main difference is the power and speed of therapeutic dose delivery. The wavelength determines the interaction with tissues, and the high power helps deliver the required energy faster within a safe protocol.

The depth of interaction depends primarily on the wavelength and optical properties of the tissues. The difference is more often that the "hot" (high-intensity) laser delivers the therapeutic dose faster and can process large areas more efficiently in a short time.

No special preparation is usually required. It is important to report your diagnosis, medications (including photosensitizing ones), implants, tattoos, and individual reaction to heat.

Yes, the laser is often included in a complex. The typical logic is to reduce pain and spasm, improve microcirculation, and then consolidate the effect with movement and strengthening. The sequence of methods is determined by a rehabilitation specialist.

Pulsed mode helps to more precisely control thermal load and comfort, especially in sensitive areas and when working deeply. Continuous mode is more often chosen when pronounced heating and treatment of large areas are indicated, but only with the correct technique and monitoring of sensations.

IV. TECHNOLOGY, PARAMETERS, AND CHOICE (DIODE VS YAG)

Photobiomodulation is the effect of light on cellular processes. It is believed that the absorption of light by cellular chromophores (particularly those associated with energy metabolism) plays a key role, which can support microcirculation, metabolism, and reparative processes in tissues as part of comprehensive therapy.

For the result, the correctly delivered energy (dose) and correct technique are more important. High power helps to deliver the necessary dose faster, but effectiveness is determined by the protocol, area, time, mode, applicator, and heat control.

The depth of interaction depends not only on the wavelength but also on scattering, absorption (water, hemoglobin, melanin), technique, applicator, and thermal control. The guidelines frequently cited in practice may look like this (values are averaged and depend on tissue and protocol):

810 nm - a balance of scattering and absorption, often considered a "deep" wave for soft tissues (e.g., nominally 4-6 cm).
980 nm - interacts more strongly with water, thus often providing a more pronounced superficial thermal component (e.g., nominally 2-4 cm).
1064 nm - can be considered a wave for deep work (e.g., nominally 6-8 cm) but requires a very careful tactic due to different thermal dynamics and the risk of overheating with incorrect technique.

Importantly, there is no linear rule "the higher the nm, the deeper." It is more accurate to think "which wave and technique are best suited for the task and tissue."

Different wavelengths interact with tissues differently. The combination of 810 nm and 980 nm expands the range of tasks - from deeper structures to superficial layers and a pronounced thermal component. The bimodal mode (810+980 simultaneously) allows combining effects in a single protocol and reducing treatment time without constant switching.

The key difference lies in the emission source and the typical logic of application.

Diode laser uses a semiconductor diode. It is usually more compact, energy-efficient, can operate on multiple wavelengths (e.g., 810 and 980 nm), and often requires less complex cooling.

YAG (Nd:YAG 1064 nm) uses a crystal (neodymium-doped yttrium aluminum garnet) and operates at a fixed wavelength of 1064 nm. Such systems can provide very high peak power but require stricter control of thermal load and staff training.

Practically: for professional sports and multi-task rehabilitation, multi-wavelength diode solutions are often chosen for flexibility, speed, and heat manageability. YAG has its niche, but it is not always a "universal" solution.

V. PROTOCOLS AND CLINICAL LOGIC

Because the stage of the process, target depth, heat sensitivity, area size, inflammation level, and rehabilitation tasks are important. Settings are tailored to the individual and specific tissue, not just to a single diagnosis name.

No. Effectiveness lies in the correct energy, technique, and thermal response control. Excessive overheating does not equal a better result and can be undesirable, so the specialist adjusts the power, mode, and speed of movement.

VI. HANDS-FREE, PACKAGE, AND SERVICE

This is a format where the applicator is fixed on a tripod and operates according to a specified protocol without being continuously held by hand. It is used when it is important to offload staff, increase repeatability, and steadily process the area over time. During the procedure, parameters and safety are controlled by the protocol and the specialist.

Applicators change the spot geometry, contact mode, and convenience of working on different areas (small joints, large muscles, hands-free). The glass ball applicator allows for contact work with gentle pressure and movement, combining light and a comfortable mechanical technique, which helps to distribute heat more evenly and improve sensation control.

Usually, 100+ protocols are available based on areas and clinical tasks. If necessary, the specialist can create and save their own parameters, as well as form favorites and patient profiles for a quick start. The specific functionality depends on the version and delivery set.

Basic rules - handle cables and accessories carefully (avoid kinks), keep optics and applicators clean, and adhere to safety regulations and periodic check-ups. The exact maintenance schedule is specified by the service documentation and the official supplier.

In the event of unusual messages, overheating, accessory damage, or unstable operation, usage should be stopped, and an authorized service center should be contacted. This is important for parameter accuracy, safety, and maintaining warranty support.

!

IMPORTANT CONCLUSION: The information is provided for informational purposes only. The selection of modes, parameters, and treatment areas is carried out exclusively by a qualified specialist in accordance with medical standards and safety regulations (including mandatory eye protection).

The product appearance may vary depending on the supply region. Technical and functional parameters are identical for all device versions.

Manufacturer:

GATRIA Global LLC 66 W Flagler Street, STE 900, Miami, 33130, Florida, USA

Contact us now

Scientific Research

Scientific Publication • Lasers in Medical Science

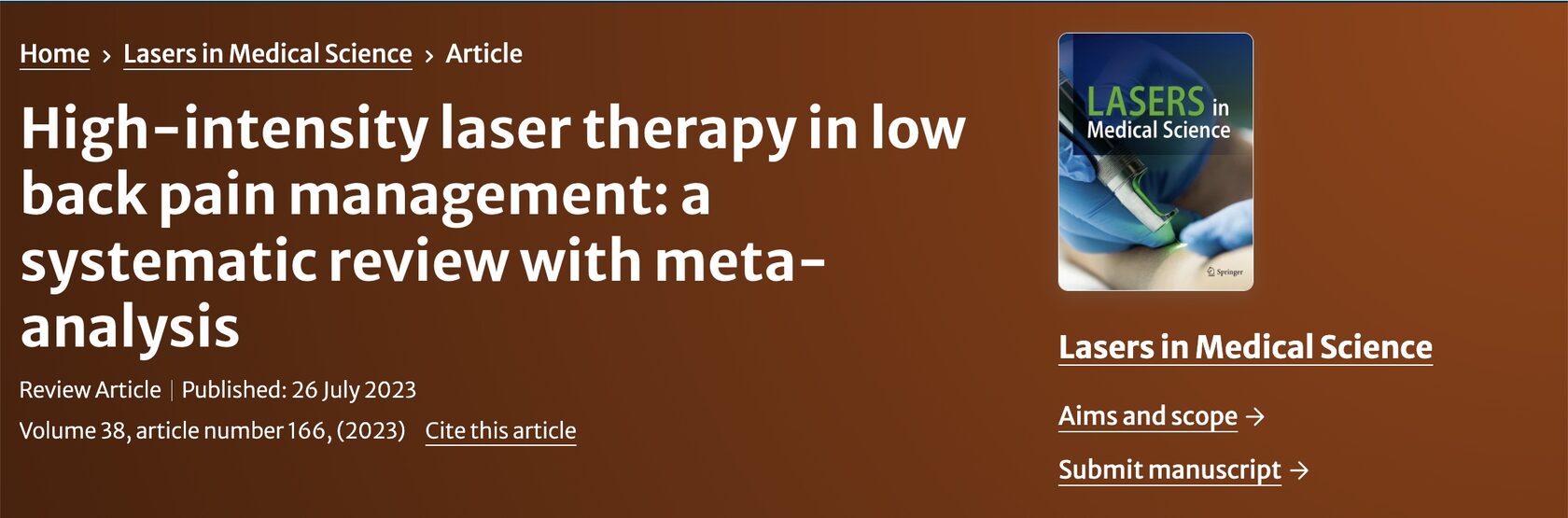

High-intensity laser therapy in low back pain management: a systematic review with meta-analysis

A systematic review of randomized controlled trials (RCTs) confirmed the superiority of the HILT group over the control groups. The model showed a statistically significant reduction in pain intensity (MD -1.65), as well as improvement in functional outcomes according to the Oswestry Disability Index and the Roland-Morris Disability Questionnaire.

DOI: 10.1007/s10103-023-03827-w • Lasers Med Sci. 2023

Read original on Springer Link

Systematic Review & Meta-analysis • Physiotherapy 2023

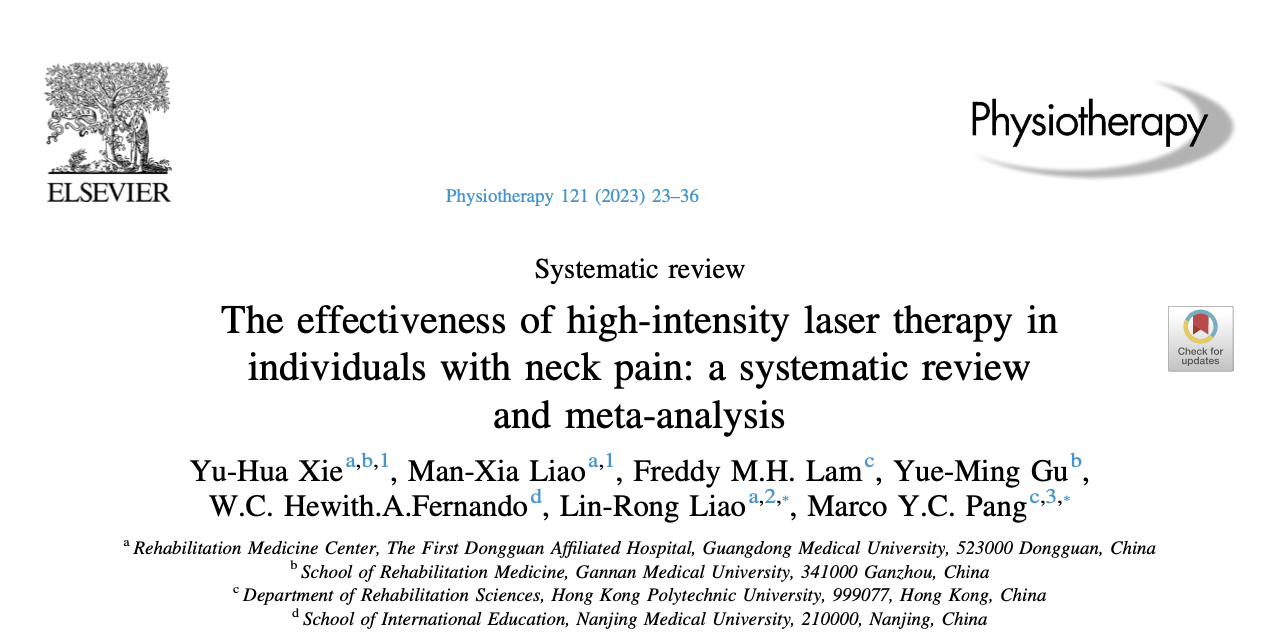

The effectiveness of high-intensity laser therapy in individuals with neck pain: a systematic review and meta-analysis

Objective of the meta-analysis: to determine the effectiveness of high-intensity laser therapy (HILT) in improving pain intensity and neck range of motion.

Statistics: HILT showed a significant advantage over placebo in reducing pain (SMD 2.12, 95% CI 1.24–3.00).
Functionality: significant improvement in cervical flexion, extension, and lateral flexion was recorded.
Design: eight randomized controlled trials (RCTs) with a moderately high level of quality were included in the analysis.

Conclusion: HILT can be considered an effective treatment method that significantly improves mobility and the quality of life of patients with cervicalgia.

Physiotherapy. 2023 Dec;121:23-36.
doi: 10.1016/j.physio.2023.07.003 • PMID: 37812850

View original on Physiotherapy Journal

×

Systematic Review & Meta-analysis • Lasers in Medical Science 2023

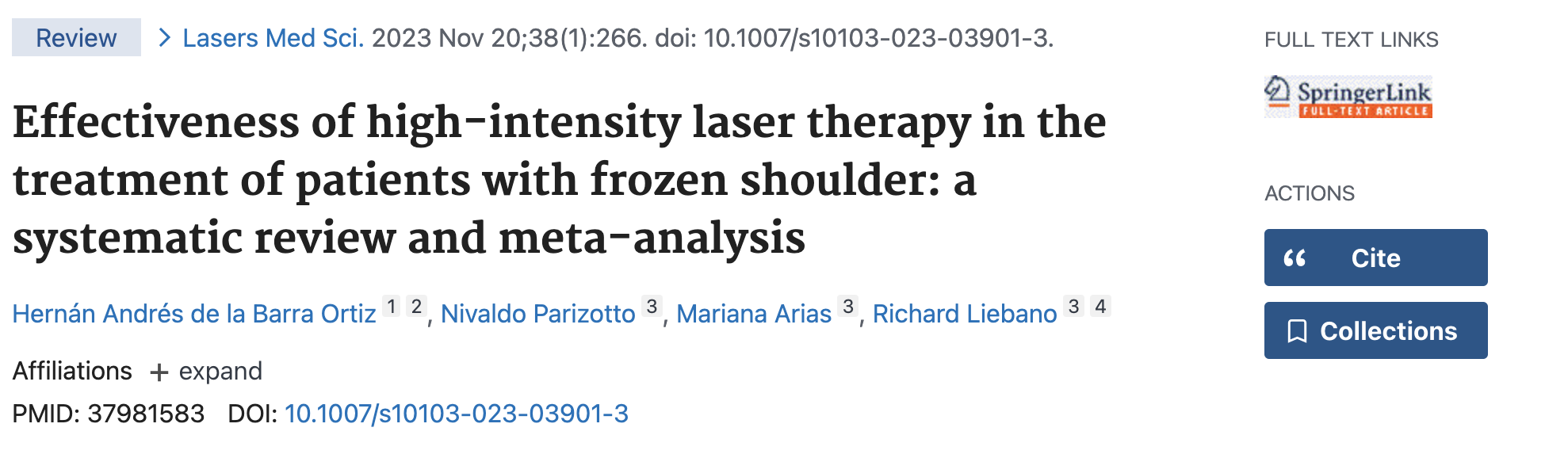

Effectiveness of high-intensity laser therapy in the treatment of patients with frozen shoulder: a systematic review and meta-analysis

Study objective: to evaluate the impact of HILT on pain intensity and functional activity in patients with adhesive capsulitis.

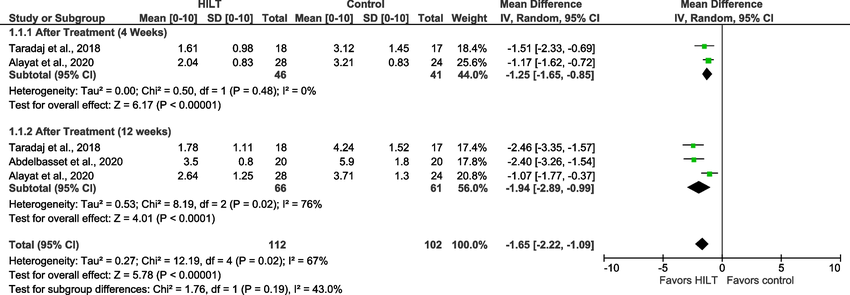

Analgesia: The meta-analysis showed a significant effect in favor of HILT on the visual analog scale (VAS MD = -2.23 cm, p < 0.01).
Functionality: A significant improvement in the Shoulder Pain and Disability Index was recorded (SPADI MD = -10.1%).
Meta-analysis: The review synthesized data from five RCTs, confirming the clinical importance of incorporating HILT into physical therapy plans.

Conclusion: High-intensity laser therapy effectively reduces pain syndrome and disability levels, serving as a valuable component of rehabilitation for "frozen shoulder".

Lasers Med Sci. 2023 Nov 20;38(1):266.
doi: 10.1007/s10103-023-03901-3 • PMID: 37981583

View original on Springer Link

×
